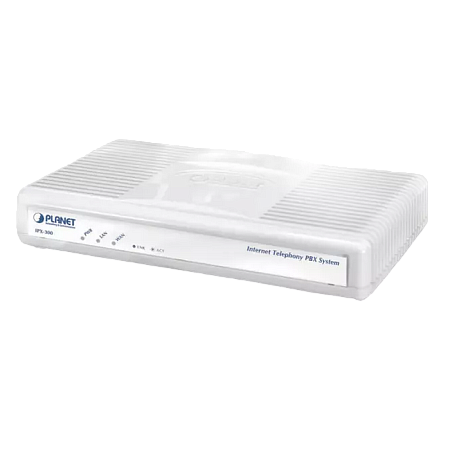

Planet IPX-300, Internet Telephony PBX System

LAN 1 RJ-45 (10/100Base-TX, Auto-Sensing / Switching)
WAN 1 RJ-45 (10/100Base-TX, Auto-Sensing / Switching)
Standards and Protocol
Call control SIP 2.0 (RFC3261) , SDP (RFC 2327), Symmetric RTP
Registration Max. 100 nodes / SIP IP phones / ATA / FXO gateways
Calls Max. 30 concurrent calls
Voice CODEC Support G.723, G.726, G.729, G.711, GSM, iLBC
Voice Processing DTMF detection and generation
In-Band and Out-of-Band (RFC 2833), (SIP INFO)
Supports password authentication using MD5 digest
PBX features Auto Attendant (AA)
Interactive Voice Response (IVR)
Records IVR via IP Phone
Voicemail Support (VM)
Voicemail Send to E-mail
Call Detailed Record (CDR)
User Management via Web Browsers
Web Firmware Upgrade
Backup and Restore Configuration file
Call / Pickup Group
Displays 30 Registered User’s Status: Unregistered / Registered / On-Call
Displays 20 Registered Trunk’s Status: Unregistered / Registered
Fax Support using G.711 Pass-Through or T.38
Call features Caller ID
Call Group
Call Hold
Call Waiting
Call Transfer
Call Forward (Always, Busy, No Answer)
Call Pickup
Call Park
Call Resume
Music on Hold
Three-way conference with feature phones (VIP-154T series, VIP-155PT / 350PT / 550PT and ATA series: VIP-156 / 157 / 158 / 161W)
Internet Sharing
Protocol TCP / IP, UDP / RTP / RTCP, HTTP, ICMP, ARP, NAT, DHCP, PPPoE, DNS
Advanced Function NAT / Bridge mode, DHCP server, Static Route, DMZ, Virtual Server, Port Trigger, Packet / URL Filter, UPnP, DDNS, SNMP, Ping test
Network and Configuration
Connection Type Static IP, PPPoE, DHCP
Management HTTP Web Browser
LED Indications System: 1, PWR
WAN: 1, LNK / ACT
LAN: 1, LNK / ACT
Environment
Dimension (W x D x H) 180 x 110 x 25 mm
Operating Temperature 0~40 degree C, 0~90% humidity
Power Requirement 12V DC
EMC / EMI CE, FCC Class B
