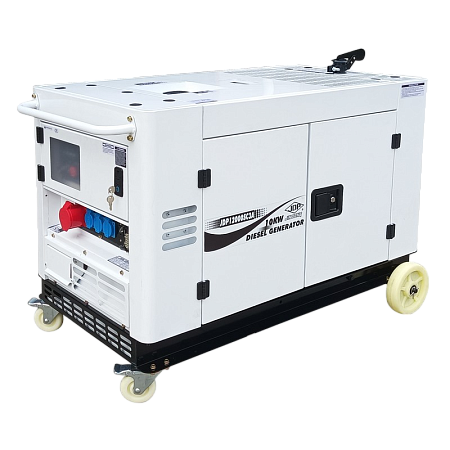

DIESEL GENERATOR JDP12000SC3A/400/230V/THREE PHASE/ATS - Silent Type, Water cooled

GENERATOR
Type Revolving field , 2 pole ,Self-Excitating Brush type with AVR
Frequency(Hz) 50
Output(kw) 10
Voltage(A.C)(V) 400/230V
Engine Speed(r/min) 3000
Phase Three phase
Power factor(cosφ) 0.8
Excitation system Brush type, Controlled Constant Self-excitation
ENGINE
Model EV80
Type V-Twin, two cylinder , 4-cycle, Water-cooled diesel engine
Displacement(cc) 794
Output(kw) 14
Fuel consumption g/kw*h ≤297
Starting system Electric Starting with battery
Fuel/Lub.oil 0# in summer,-10# or -20# in winter, light diesel fuel/SAE10W-30、SAE20W-40
Fuel tank capacity(L) 25
Lub.oil capacity(L) 2.27
STANDARD
Fuel gauge with
Voltmeter with
AC Circuit Breaker with
Engine Switch with
DC output 12V/8.3A with
low oil Level alert with
AC Socket with
Handle&Wheels with
N.W(kg) 295
