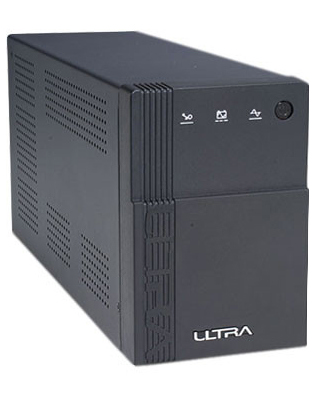

UPS Ultra Power EL-1K 1000VA/700W, Tower, Pure Sine Wave, LCD, AVR, USB, RJ11/RJ45, 2*Schuko socket

---
EL-1K 1000VA/800W
Front Panel: LCD Display
AC Mode:
Input voltage range: 145~275Vac
Input frequency range: 50±0,5Hz
Output voltage range: 200~240Vac
Overcurrent Protection: Breaker
Inverter Mode:
Output voltage range: 220Vac±5%
Output frequency: 50±0.5Hz (Auto Sensing)
Power factor: 0.8
Output wave form: Pure sine wave
Transfer time: Typical 2~6ms, Max.10ms.
Overload capability: Automally shut down in 60sec while with 110% load, and shut down in 5sec while with 120% load
Overcurrent Protection: System shuts down automatically within 20ms
BATTERY:
Battery model: Sealed maintenance-free lead-acid batteries
DC Voltage: DC 24V
QTY & capacity of battery: 2 pc*12V7Ah
Charging period: 6~8 hours recover to 90% capacity
Double CPU controlled
Silence function
Pure sine wave output
Compatible with generator
Automatically transferred to battery mode when
input over voltage or under voltage
Output overload and short circuit protection
Can be connected to external battery for longer power supply
Powerful charging current for high-capacity battery

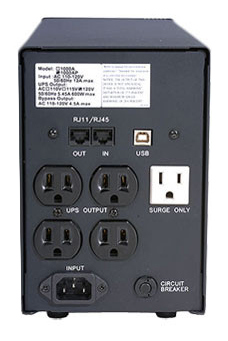

RJ11/RJ45, communication line protection function
RS232/USB port(optional), intelligent monitoring function

Unit dimension (mm): 384*122*192 mm
Unit weight ( kg): 9 kg
