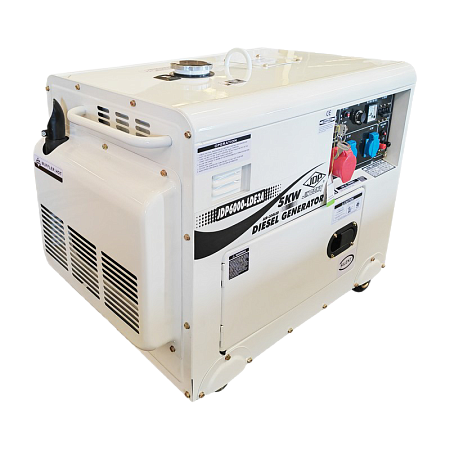

DIESEL GENERATOR JDP6000-LDE3A/400/230V/THREE PHASE/ATS - Silent Type, Air-cooled

Silent Type GENERATOR
Type Revolving field , 2 pole ,Self-Excitating Brush type with AVR
Frequency(Hz) 50
Output(kw) 5
Voltage(A.C)(V) 400/230
Engine Speed(r/min) 3000
Phase Three phase
Power factor(cosφ) 0.8
Coupling Pattern Direct connection
ENGINE
Model JDP186FAE
Type Direct injection, Vertical, 4-cycle, Air-cooled diesel engine
Displacement(cc) 418
Max.output(kw) 6.5
Cont.Output(kw) 5.7
Fuel consumption g/kw*h ≤273
Starting system Electric Starting with battery
Fuel/Lub.oil 0# in summer,-10# or -20# in winter, light diesel fuel/SAE10W30
Fuel tank capacity(L) 15
Lub.oil capacity(L) 1.65
STANDARD
Fuel gauge with
Voltmeter with
AC Circuit Breaker with
Engine Switch with
DC output 12V/8.3A with
low oil Level alert with
AC Socket with
Handle&Wheels with
N.W(kg) 165
