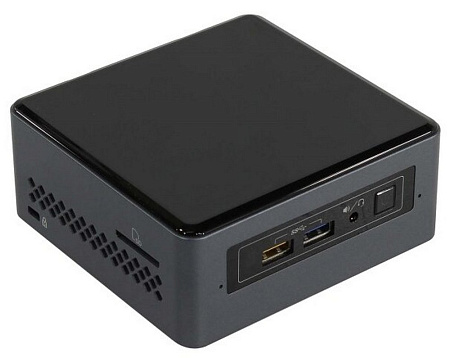

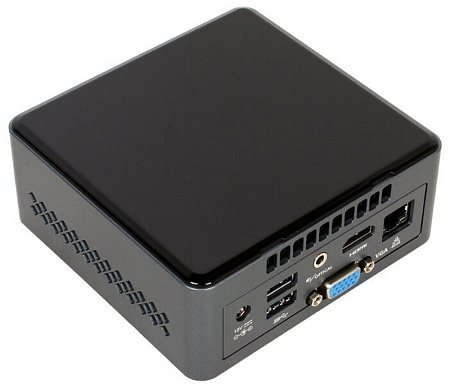

Mini PC Intel NUC Barebone BOXNUC6CAYH (Celeron J3455 up 2.3GHz, 2xSO-DIMM DDR3, 1xM.2, 1x2.5" SATA)

// Essentials
Intel® NUC Kit with Intel® Celeron® Processors

Board Form Factor
UCFF (4" x 4")

Internal Drive Form Factor
M.2 and 2.5" Drive

DC Input Voltage Supported
12-19 VDC

Processor Included
Intel® Celeron® Processor J3455 (2M Cache, up to 2.3 GHz)

# of Cores / of Threads
4 /4

Memory & Storage
Max Memory Size (dependent on memory type): 8 GB

Memory Types
DDR3L-1600/1866 1.35V SO-DIMM
Max # of DIMMs: 2

Processor Graphics
Processor Graphics ‡ Intel® HD Graphics 500

Graphics Output
VGA (HDB15); HDMI 2.0
# of Displays Supported ‡ 2

Expansion Options
PCI Express Revision Gen2
M.2 slot with PCIe X1 lanes

Removable Memory Card Slot
SDXC with UHS-I support

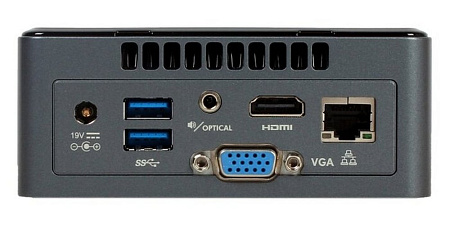

I/O Specifications
# of USB Ports : 6

USB Configuration
2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers

Max # of SATA 6.0 Gb/s Ports: 1

Audio (back channel + front channel)
7.1 digital; L+R+mic (F); L+R+TOSLINK (R)

Integrated LAN
Realtek 8111HN

Integrated Wireless‡
Intel® Wireless-AC 3168 + Bluetooth 4.2

Integrated Bluetooth: Yes

Consumer Infrared Rx Sensor: Yes

S/PDIF Out Connector: TOSLINK

Chassis Dimensions
115 x 111 x 51mm
